Oxygen Equipment
Ready to start your next project with eWater?
FAQ
-
Does the Ozone Source Come from Air or Oxygen?
We offer two types of ozone systems: one using air as the source and the other using oxygen.
넶3 2025-03-03 -
Should the Number of High-Efficiency Oxygenators Match the Stocking Density?
Stocking density affects the dissolved oxygen level in the water. Generally, higher density means higher yield, which requires more oxygenators.
넶3 2025-03-03 -
How Often Should Dissolved Oxygen Pumps Be Replaced?
It is recommended to regularly inspect the pump operation and replace it according to the instructions provided in our manual.
넶4 2025-03-03
Model | Treatment Capacity(m³/h) | Product Size(mm) | Flange Diameter | Rated Power(watts) |
EHOC-30 | 30-40 | ∅500*2250 | DN80 | 1100 |
EHOC-80 | 50-80 | ∅500*2250 | DN100 | 2200 |
* FRP material products are available for specific applications
* All products are equipped with a water pump
Hi-efficiency Oxygenation Column
·Excellent resistance to a wide range of chemicals, suitable for use in various environments and oxygenation processes
·With pressure monitoring system and automatic pressure relief solenoid valve, safer and more reliable
·Lightweight and easy to install in oxygenation systems
·Optimize oxygen transfer efficiency,and effectively dissolve oxygen into water upto 36mg/L
Model | Prodcution(LPM) | O2 Concentration | Product Size(mm) | Power Supply | Rated Power(watts) |
EOX-10 | 10 | 92-95% | 550*600*110 | 220V/50Hz | 850 |
EOX-20 | 20 | 92-95% | 550*720*110 | 220V/50Hz | 1700 |
EOX-40 | 40 | 92-95% | 550*1200*1100 | 380V/50Hz | 3400 |
* Outlet Pressure: 0.3 MPa
Integrated Oxygen Generator
·Built-in air condensation system for more stable oxygen output
·High purity oxygen output with PSA technolgy,typically provide oxygen concentrations of 92% or higher
·Adustable oxygen flow rates to meet specific needs
·Ensure the user's safty with oxygen purity monitoring, alarms for low oxygen levels or malfunctions, and automatic shut-off in case of emergencies
·Minimize noise disturbance (under 55 dB) for the user and their surroundings
Model | Treatment Capacity(m/h) | Product Size(mm) | Flange Diameter | Pressure Resistance(MPa) |
ESC-30 | 20-40 | ∅600*1550 | DN80 | 0.25 |
ESC-60 | 50-70 | ∅860*2250 | DN100 | 0.25 |
ESC-90 | 80-100 | ∅1000*2520 | DN150 | 0.25 |
ESC-120 | 110-130 | ∅1100*2790 | DN150 | 0.25 |
ESC-150 | 140-160 | ∅1200*3050 | DN150 | 0.25 |

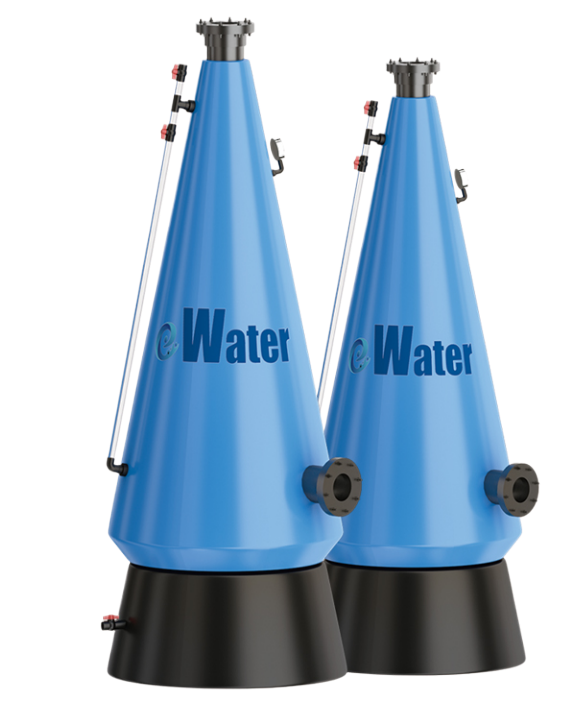

Speece Cone
·Excellent resistance to a wide range of chemicals, ensuring the oxygen cone does not deteriorate or experience chemical damage over time
·Generally more cost-effective compared to other materials like steel or concrete, and efficiency with high oxygen utilization(≥90%)
·Easy to clean, preventing the buildup of biofilm or debris that could impede oxygen transfer
·Optimize oxygen transfer efficiency,and effectively dissolve oxygen into water upto 36mg/L
