eWater Aquaculture-Disinfection System

Disinfection System

Ready to start your next project with eWater?

Price Inquiry

FAQ

Does the Ozone Source Come from Air or Oxygen?

We offer two types of ozone systems: one using air as the source and the other using oxygen.

넶3 2025-03-03
What Is the Lifespan of UV Lamp Tubes?

This depends on the usage conditions, as well as the brand and type of UV lamp tube.

넶3 2025-03-03
Is the UV System Necessary in RAS? Does It Affect RAS Operation?

We recommend using a UV system to achieve better sterilization effects.

넶3 2025-03-03

Disinfection System installation manual

Details

Disinfection System installation manual

Details

Disinfection System operation guide

Details

Disinfection System operation guide

Details

Oxygen-feed ozone generator

Model	Prodcution(g/h)	O2 Concentration(mg/l)	Product Size(mm)	Cooling System	Rated Power(watts)
EOZ-O-5	5	120	330260550	Air Cooling	160
EOZ-O-10	10	120	350300580	Air Cooling	220
EOZ-O-15/20	15/20	120	400300800	Air Cooling	280/320
EOZ-O-30	30	120	4003001000	Air Cooling	460
EOZ-O-40/50	40/50	120	5004001050	Air Cooling	550/650
EOZ-O-60	60	120	5004001050	Air Cooling	800
EOZ-O-80/100	80/100	120	5004001050	Air Cooling	1350/1900

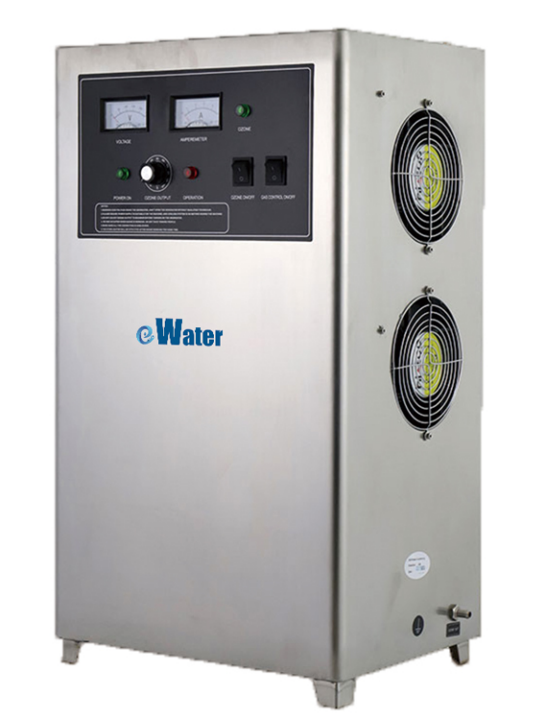

Ozone Generator

·Powered oxygen generating system(optional),high and stable ozone concentration upto 120mg/l
·Over-current,over-voltage dule protecion devices, safer operation
·A built-in timer allows users to set the duration of ozone generation

·Stable ozone generation service with micro-gap dischage technology, higher ozone concentration

Model	Treatment Capacity(m³/h)	UV Dosage(mJ/cm²)	Inlet/Outlet Diameter	Product Size(mm)	Rated Power(Watts)
EUV-316L-10AR	10	40	DN150	1300160360	150
EUV-316L-30AR	30	40	DN150	1300160360	360
EUV-316L-60AR	60	40	DN200	1300220360	720
EUV-316L-100AR	100	40	DN250	1800275480	1550
EUV-316L-150AR	150	40	DN300	1800325480	2240
EUV-316L-200AR	200	40	DN300	1800325600	3200

* SS304 material products for freshwater are available

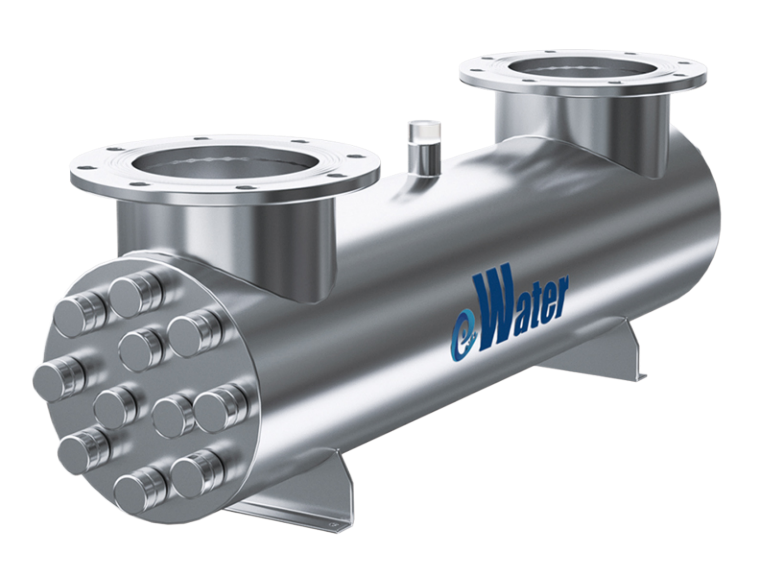

Closed-vessel UV Disinfection System

·High transmittance, pressure resistant quartz sleeve
·Equipped with an automatic sleeve wiping system to effectively ensure the intensity of ultraviolet radiation
·Stable and reliable UV lamp ballasts, special designed for preheating lamp

Model	Treatment Capacity(m/h)	UV Dosage(mJ/cm²)	Molds Mounting Dimension (mm)	Rated Power(Watts)
EUV-OC-316L-200	200	40	2000200960	2320
EUV-OC-316L-300	300	40	20003001160	3480
EUV-OC-316L-400	400	40	20004001160	4640
EUV-OC-316L-500	500	40	20005001160	5800
EUV-OC-316L-600	600	40	20006001160	6960
EUV-OC-316L-800	800	40	20008001160	9280
EUV-OC-316L-1000	1000	40	200010001160	116000

*Seperated control cabinet

*SS304 material products for freshwater are available

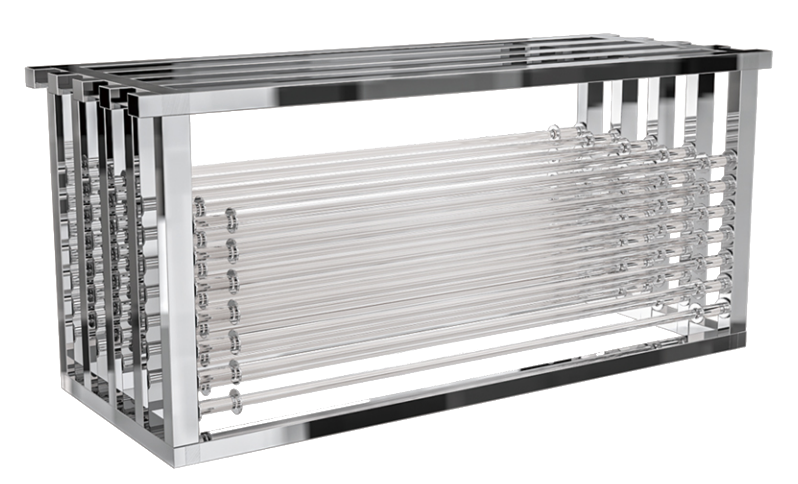

Open-channel Uv Disinfection System

·High sterilizing rate( > 99.99%)
·Modular design for easy transportation and assembly
·Automatic sleeve wiping system, ensuring the intensity of ultraviolet radiation stong and sturdy
